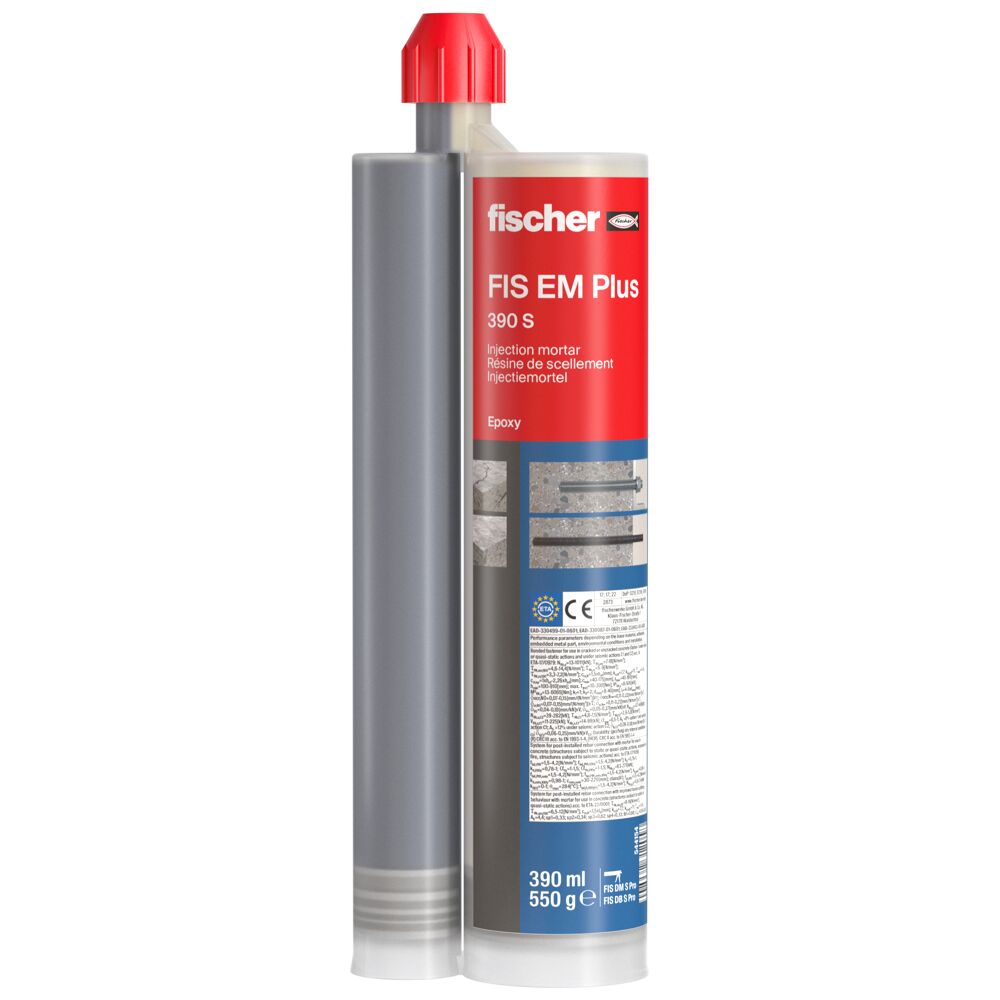

FIS EM Plus
The powerful injection mortar for rebar connections and cracked concrete
The fischer injection mortar FIS EM Plus is a high-quality epoxy mortar for top load-bearing capacity in cracked and non-cracked concrete and for seismic applications in performance categories C1 and C2. It is suitable for fixations of shear connectors for concrete layers, tall shelvings, and heavy steel constructions both inside and outside.

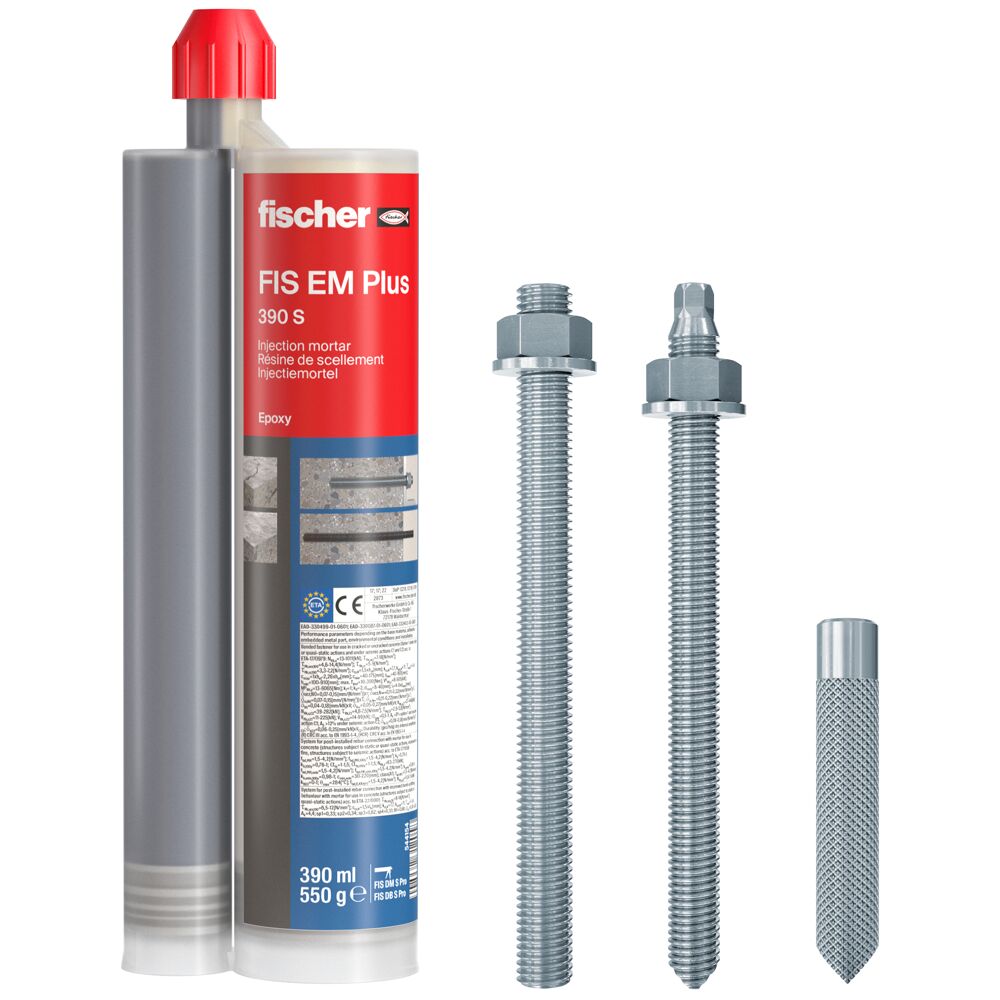

The injection mortar is processed with the approved system components fischer threaded rod FIS A with variable anchorage depths and fischer internal threaded anchor RG M I as well as with reinforcement bars. The epoxy mortar is ideally suited for rebar connections that are installed with a large drill hole diameter and a high anchorage depth. It can also be used for diamond-drilled and water-filled drill holes.
- Approved for cracked and non-cracked concrete
- Suitable for water-filled drill holes
- Suitable for diamond-drilled holes
- Wide range of installation temperatures
- Long working time
Advantages
- The ETA guarantees a service life of 100 years.
- An expert report from IEA Stuttgart confirms a service life of up to 120 years.
- The optimised formulation of the epoxy resin mortar FIS EM Plus leads to improved load values in cracked and non-cracked concrete.
- The mortar can be used for rebar connections from diameter 8 to 40, including seismic applications.
- With the threaded rod FIS A, the loads to be applied can be designed variably by selecting the anchorage depth. The mortar is approved for diamond drilled and water-filled drill holes as well as seismic applications and thus offers safety under extreme conditions.
- For practical use on the building site, FIS EM Plus can be processed at low temperatures down to -5°C.
Applications
- Post-installed rebar connections
- Jointers for concrete layers
- Rim beam anchorings
- Seismic applications
- Anchorings in diamond-drilled or in water-filled drill holes
- Heavy steel constructions
- Bridge railings
- Foundation anchoring
- Machine anchoring
- Silo installations
- Tall shelving
- Sound barriers
- Temporary or removable fixings (with internal threaded anchor RG M I)
- Anchorings in sealing surfaces according to WRL (Water Resources Law)
Building Materials
Approved for anchorings in:
- Concrete C20/25 to C50/60, cracked and non-cracked
Also suitable for:
- Natural stone with dense structure
Functionality
- The resin and hardener are stored in two separate chambers.
- They are mixed and activated in the static mixer when the cartridge is pressed.
- The drill hole must be cleaned in accordance with the approval.
- The mortar is injected bubble-free from the bottom of the drill hole.
- The mortar bonds the entire surface of the anchor with the drill hole wall and seals off the drill hole.
- The anchor rod is inserted manually with a slight rotating movement until it reaches the bottom of the drill hole.
- FIS EM Plus is suitable for pre-positioned and push-through installation.
- The annular gap is filled with injection mortar.
- The specified curing time must be observed before applying the load.
- Load values depend on the base material, anchor size, embedment depth and installation conditions.
- Refer to the relevant technical documentation and approval for detailed design values.
Product Gallery

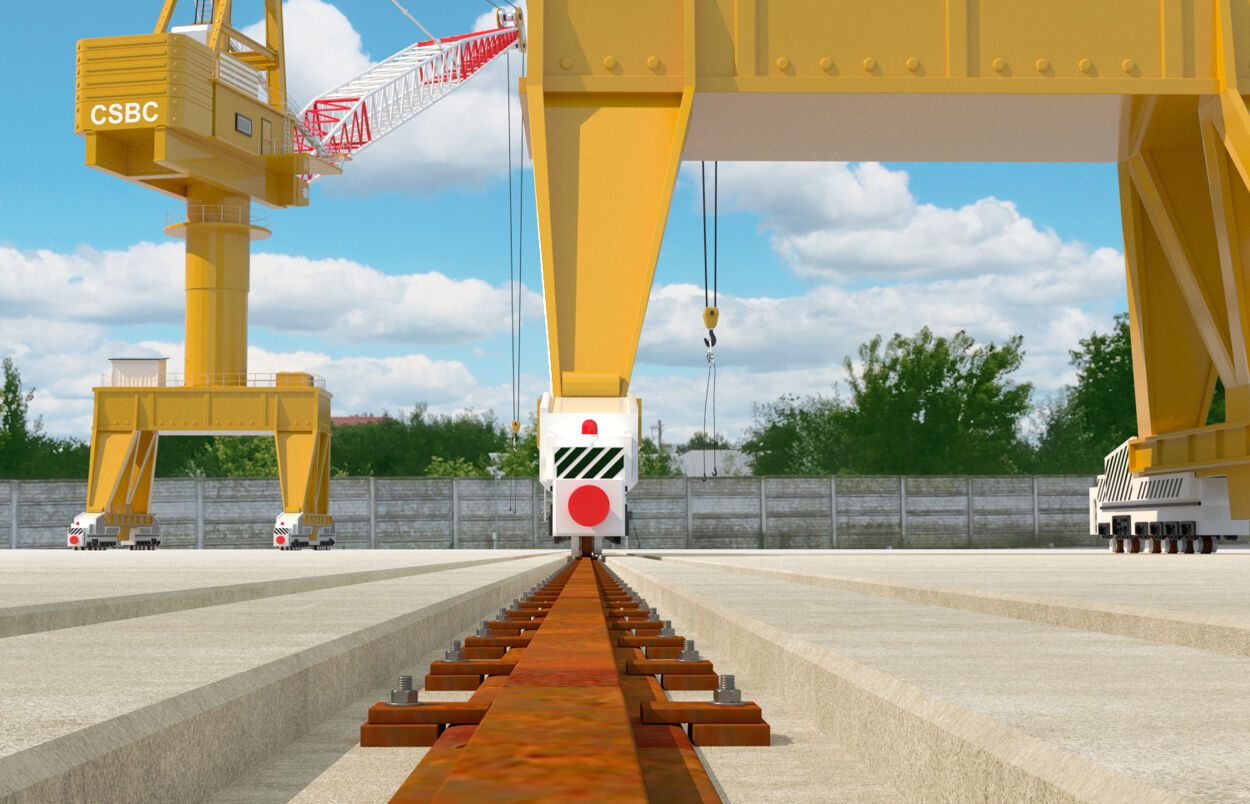

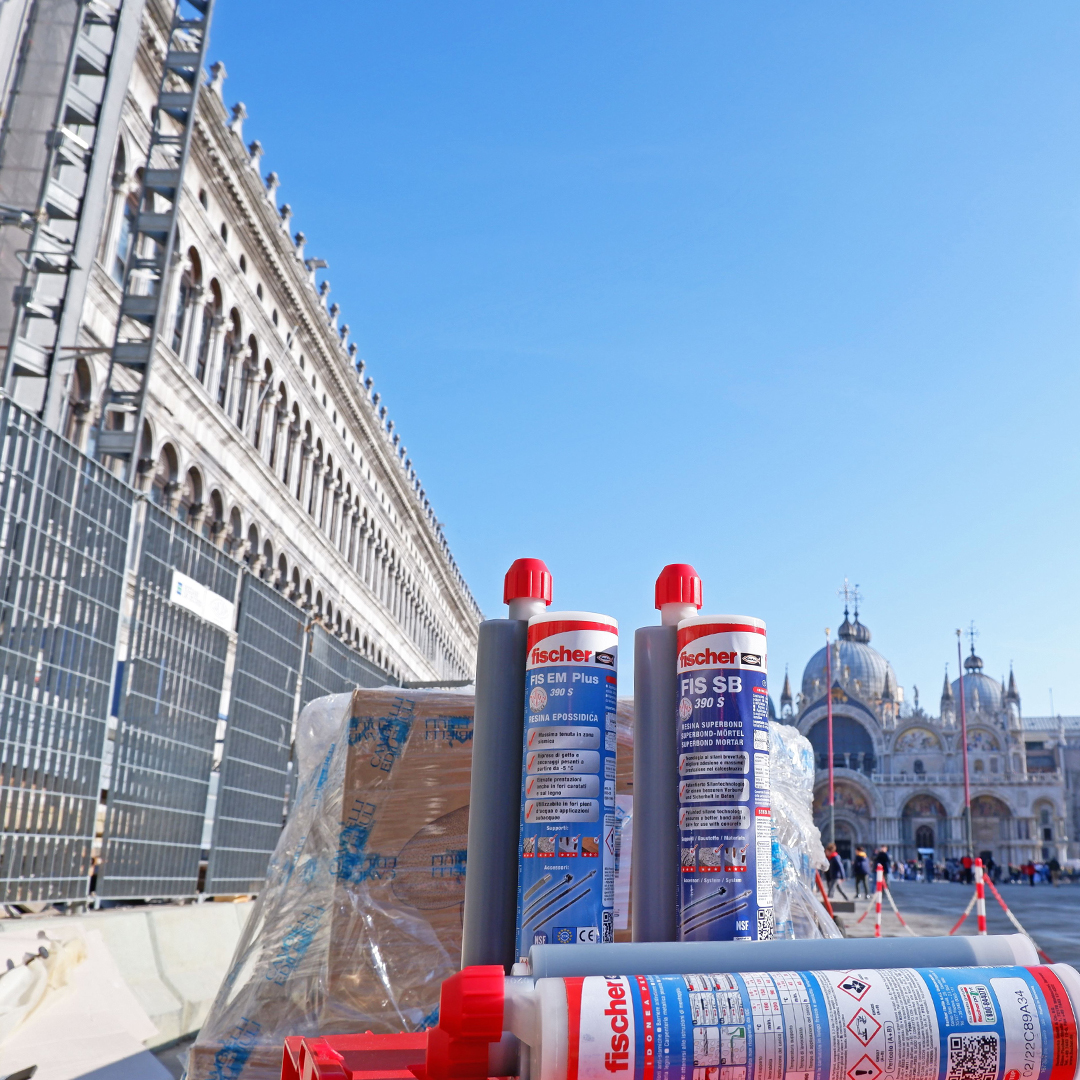

FIS EM Plus in application
